Product Overview

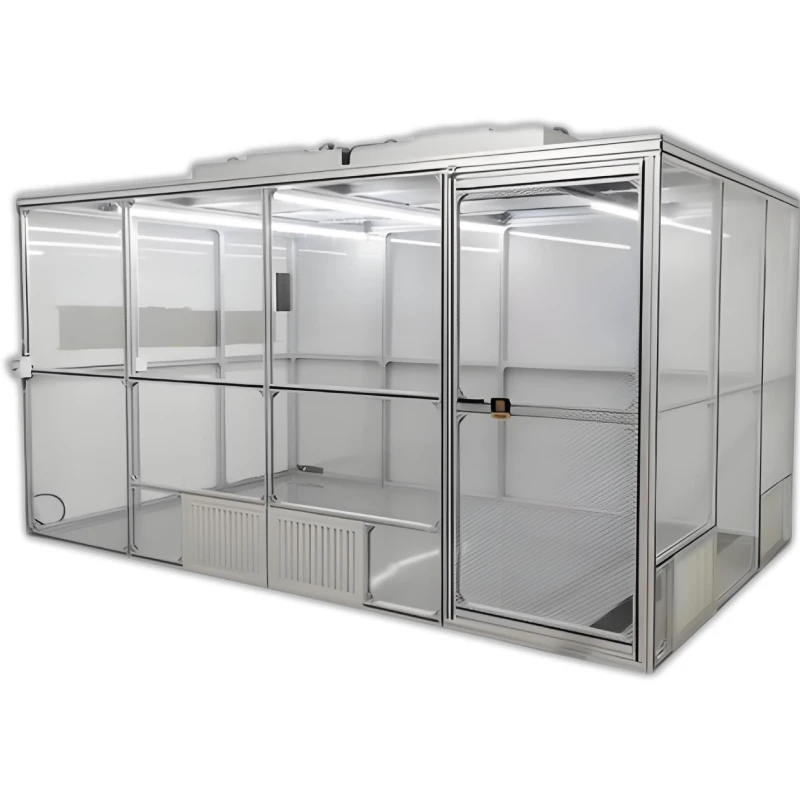

The Acrylic Clean Booth is a modular, self-supporting contamination control enclosure designed to create a local clean zone within a general workshop or existing cleanroom. Constructed with transparent acrylic panels and an industrial-grade frame, it provides excellent visibility, easy access, and reliable particle protection for sensitive processes.

This unit is ideal for applications requiring ISO Class 6–7 (Class 1,000–10,000) cleanliness without the cost of building a permanent cleanroom.

Key Features

• High Transparency

  Optical-grade acrylic (PMMA) panels provide crystal-clear visibility, allowing operators and supervisors to monitor processes from outside without compromising cleanliness.

• Modular Construction

  Prefabricated panels and frame components allow for easy assembly, disassembly, and reconfiguration as production needs change.

• HEPA/ULPA Filtration

  Integrated fan filter units (FFUs) deliver ISO Class 5–6 clean air vertically downward, sweeping particles away from the work zone.

• Rigid Frame Options

  Available with industrial aluminum extrusion (lightweight, corrosion-resistant) or stainless steel (heavy-duty, pharmaceutical-grade) frames.

• Soft or Hard Wall Configurations

  Combine acrylic panels with anti-static PVC strip curtains for entry points or partial enclosures, balancing cleanliness with accessibility.

• Static Control (Optional)

  Anti-static acrylic panels and grounding kits available for ESD-sensitive electronics assembly.

• Easy Access

  Sliding or hinged acrylic doors with magnetic catches or latches provide convenient operator entry.

Optional Accessories

• ESD Grounding Kit – For anti-static acrylic panels to dissipate static charge.

• UV Germicidal Lamp – Surface sterilization during idle periods.

• HEPA Filter Pressure Gauge – Real-time filter differential pressure monitoring.

• Voice Prompt System – Audio guidance for FFU status and filter replacement alerts.

• Castors with Brakes – Mobile clean booth for flexible workstation positioning.

• Stainless Steel Workbench – Integrated table surface inside the booth.

• Particle Counter Port – Pre-installed port for external particle monitoring.

• Interlocked Entry Door – Prevents both doors from opening simultaneously.

Applications

• Electronics Assembly – PCB soldering, mobile phone repair, hard drive assembly.

• Medical Device Manufacturing – Catheter, syringe, and implant assembly.

• Laboratory Workstations – Microscope work, sample preparation, cell culture handling.

• Pharmaceutical Compounding – Non-sterile mixing and dispensing (ISO Class 7–8).

• Optics & Precision Instruments – Lens assembly, calibration, and inspection.

• Food Packaging – Hygiene zones for ready-to-eat meal assembly.

• Research & Development – Clean testing environments for prototype development.

Why Choose an Acrylic Clean Booth?

• Cost-Effective – Significantly lower capital cost compared to permanent softwall or hardwall cleanrooms.

• Excellent Visibility – Clear acrylic allows 24/7 visual monitoring without entering the clean zone.

• Flexible & Expandable – Modular design permits future size changes, relocation, or reconfiguration.

• Quick Installation – Prefabricated panels assemble on-site in 1–2 days (vs. weeks for traditional cleanrooms).

• Easy to Clean – Smooth acrylic surface wipes clean with standard cleanroom wipes and isopropyl alcohol.

• Low Maintenance – FFUs have long-life HEPA filters (3–5 years typical); acrylic panels require no special care.

• Energy Efficient – Enclosed volume reduces FFU runtime and cooling/heating costs compared to full-room cleanrooms.
